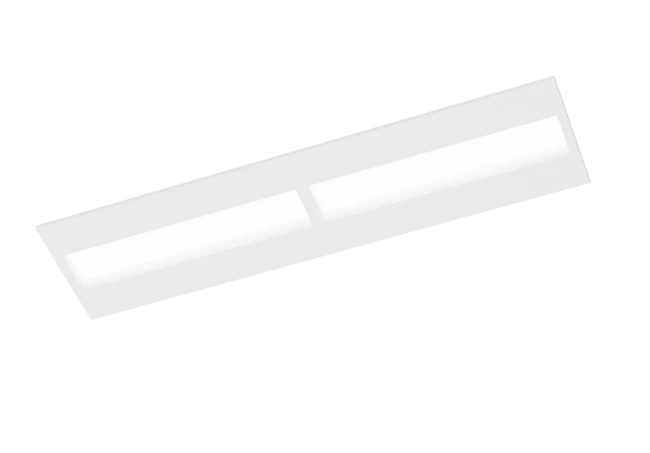

Flexible Modular Ceiling Panel

LEDBR-To-P L1690-185-30W-BLE2-TW

Product Code
SP_150100020
  • Energy-efficient recessed LED panel, specifically designed for modular ceiling grid systems
  • Uniform light distribution with low glare (UGR < 19) – ideal for office applications
  • Custom sizes available from 100 pieces, with dimensions ranging from 1180-2250 mm (length) and 115-600 mm (width)
  • Lead time approximately 4 months

Specifications Packaging Accessoires

Electrical data

Voltage type AC/DC
Nominal voltage 220|240 V
Power factor 0.9
Max. system power 30 W
Displacement factor (DF) ≥ 0.9
Nominal voltage DC 198|264 V
Frequency 50|60 Hz

Photometrical data

Rated luminous flux according to IEC 62722-2-1 4000 lm
Colour temperature 2700|6500 K
Luminaire efficacy 125 lm/W
Colour consistency (SDCM) 3
Colour rendering index (CRI) > 90

Light technical data

Beam angle 90°
Beam angle 90°
UGR 19

Lifespan

Lifetime (L70) 100000 h
Lifetime (L80) 70000 h
On-/Off-cycles 100000
Lifetime (L90) 50000 h

Capabilities

Dimmability BLE2
Sensor type No sensor

Certificates and standards

Protection class II
Degree of protection (IP) IP20
Glow wire test 650°C
IP recessed part IP20
Risk group (EN 62471) RG0
Impact strength IK02
Type of control gear LED operating device current-controlled
With control gear Yes
Driver failure rate (at 5,000 hrs) 1%
Wirethrough No
Housing colour White
Optical material Polycarbonate
Finishing White RAL9003
Length 1690 mm
Width 185 mm
Height/depth 40 mm
Application temperature 25°C
Storage environment -25|50°C
Operating temperature -10|45°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
 94051190CT1
LEDFixture-Ceiling-Cable-Kit-0.5m


Accessory Safety cable ceiling kit - 500mm - Stainless steel

Product Code
140060852
LEDPanelRC-Sl U19 EM-kit 1h


Accessory Panels - Emergency kit 1 Hour

Product Code
542098000800
