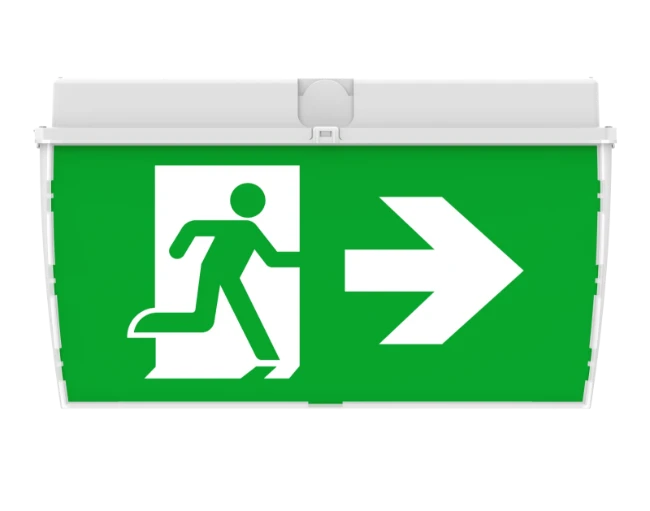

Emergency Exit Sign

LEDExit-Bulkhead-E 6W-AT-EM3-WH-IP65

Product Code
572005003800
  • Easily update signage with interchangeable pictograms included in the package
  • Suitable for both IP20 and IP65-rated applications, ensuring compatibility with various environments
  • Equipped with a high-performance LiFePO4 battery, providing 3 hours of reliable operation
  • Includes a range of accessories to support diverse mounting methods

Specifications Packaging Accessoires

Electrical data

Voltage type AC
Nominal voltage 200|240 V
Power factor 0.3
Max. system power 6 W
Max. number of luminaires per miniature circuit breaker B16 (MCB) 177
Max. number of luminaires per miniature circuit breaker C16 (MCB) 177

Photometrical data

Rated luminous flux according to IEC 62722-2-1 150 lm
Colour temperature 6500 K

Certificates and standards

Protection class II
Degree of protection (IP) IP65
Impact strength IK06
Type of control gear LED operating device voltage-controlled
Housing colour White
Mounting method Ceiling surface mounting
Length 340 mm
Width 194 mm
Height/depth 108 mm
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
694149179028294051190CT10.35 x 0.11 x 0.2 m1.2 KG
LEDExit-Bulkhead-E Recessed-Kit-IP65


Accessory Emergency Exit Sign - Recess mounting kit

Product Code
572005004000
Built-in housing

Downloads

572005003800_ProductSheet_en.pdf
LDT_572005003800.ldt
OPPLE_gb_572005003800.txt
